TV through coax issues. Uverse Realtime help

We've been having issues watching live TV in our bedroom recently.  Live TV will freeze/pause and fragmenting while trying to watch a DVR'd show is next to impossible.  I've attached Realtime images connected to the box in question. The box is connected via coax and the gateway is also connected from the outside via coax as well.





CoaxHPNA-2011-04-01-21-55-57.pngBitloading-2011-04-01-21-55-53.pngInterfaces-2011-04-01-21-55-49.pngErrorTable-2011-04-01-21-55-46.pngStats-2011-04-01-21-55-42.png

5 Attachments

Responses

Accepted Solution

Official Solution

SomeJoe7777

Expert

 •

9.4K Messages

9 years ago

You're getting interference on the coax run from the outside box to the gateway.  Call tech support, have them send a tech, he needs to remove the outside-to-gateway coax run and the diplexer and replace it with a Cat5e run.



spd2demun

Expert

 •

24.3K Messages

9 years ago

We can't see your photo until the Mod approves it (standard procedure). Just so you know we aren't ignoring you. Smiley Wink

americangame

Professor

 •

1.3K Messages

9 years ago


@SomeJoe7777 wrote:

You're getting interference on the coax run from the outside box to the gateway.  Call tech support, have them send a tech, he needs to remove the outside-to-gateway coax run and the diplexer and replace it with a Cat5e run.




Thanks  for the info. I might be stupid with this but the only two options for tthe tech to install the outside line to the gateway is either via coax or phone line.  Is coming in via the phone line the same at CAT5e or is there a difference?

TexasEd

Guru

 •

1.1K Messages

9 years ago

Cat5e is ethernet cable -- different from phone line.  Here's some more info.  My install is coax and works well - usually - but most folks have found Cat5e wiring to be more reliable.

SomeJoe7777

Expert

 •

9.4K Messages

9 years ago

The NID to gateway link can be coax using a diplexer (which is what you have now) or it can use a single twisted pair.  You can run that single pair over phone wire or Cat5e, but using Cat5e makes the connection more resistant to interference.



Coax+Diplexer installations can pick up interference like this because the entire coax network is physically connected together.  Using Cat5e or phone wire will isolate that incoming part of the system.



americangame

Professor

 •

1.3K Messages

9 years ago

Thanks for all the help guys.  we'll probably have to ask them to go throught he phone wire due to the side of the house where the connection is located is brick.  There is another location they may be able to install a cat5e cable at isn't brick but it is closer to the gateway installation area.

americangame

Professor

 •

1.3K Messages

9 years ago

Just a note to the community, after I had the techs (both a line tech and an inside tech) come in I actually was able to upgrade my profile from the 19/2 profile to the 25/2 one.  It's very nice to have 3 HD channels instead of having only 2.

spd2demun

Expert

 •

24.3K Messages

9 years ago

Excellent!  Enjoy your 3HD. Smiley Happy

SomeJoe7777

Expert

 •

9.4K Messages

9 years ago

Excellent that everything's working better.  Can you post another set of screenshots from UVRT so that we can see the improvement?



americangame

Professor

 •

1.3K Messages

9 years ago

Sorry for the delayed response, here are my new statsBitloading-2011-04-28-20-53-05.pngErrorTable-2011-04-28-20-52-54.pngStats-2011-04-28-20-52-42.png

SomeJoe7777

Expert

 •

9.4K Messages

9 years ago

Very much improved!  And an increase to the 25/2 line profile and 1SD/3HD IPTV profile as well. Smiley Happy



americangame

Professor

 •

1.3K Messages

9 years ago




@SomeJoe7777 wrote:

Very much improved!  And an increase to the 25/2 line profile and 1SD/3HD IPTV profile as well. Smiley Happy




What the Uverse tech told me was that apparently the house was built using RG59 instead of RG6 so that they could make the house on the cheap and that this was a majority of my interference issues. Go figure.



americangame

Professor

 •

1.3K Messages

9 years ago

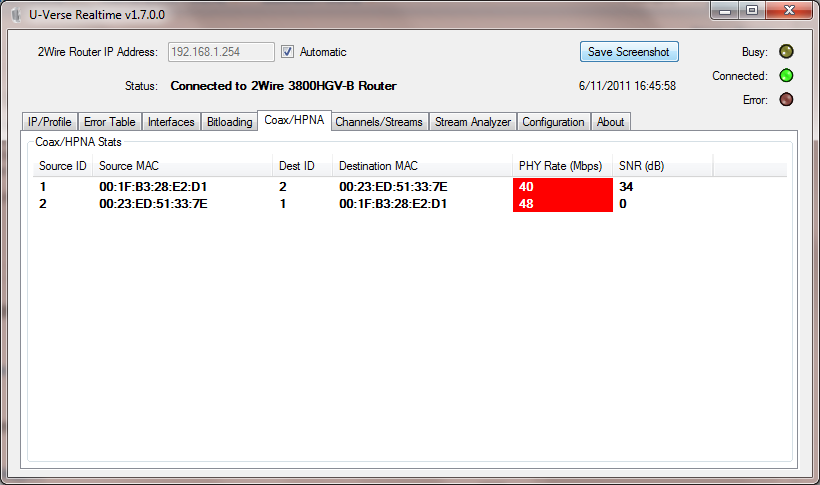

Apparently I'm seeing a new issue arrise on my Realtime report recently. Under the Coax/HPNA devices I noticed that my PHY rate (whatever that is) has two devices, who's MAC addresses I don't recgonize, being very low. I've noticed that this issue seems to cause my Xbox not want to connect to the internet quickly.  Picture of it below.CoaxHPNA-2011-06-11-16-45-58.png

americangame

Professor

 •

1.3K Messages

9 years ago

Quick update. Apparently after I disconnected everything from the gateway and plugged it all back in, my problem went away.
RCSMG

Expert

 •

23.3K Messages

9 years ago

Glad to know those issues are gone.
